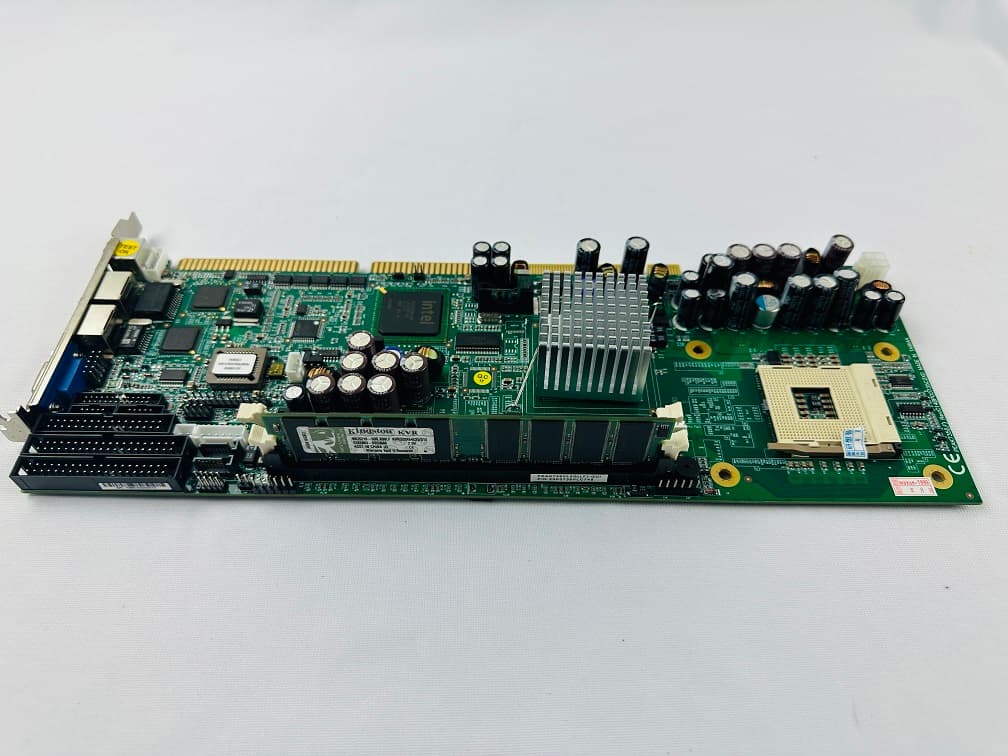

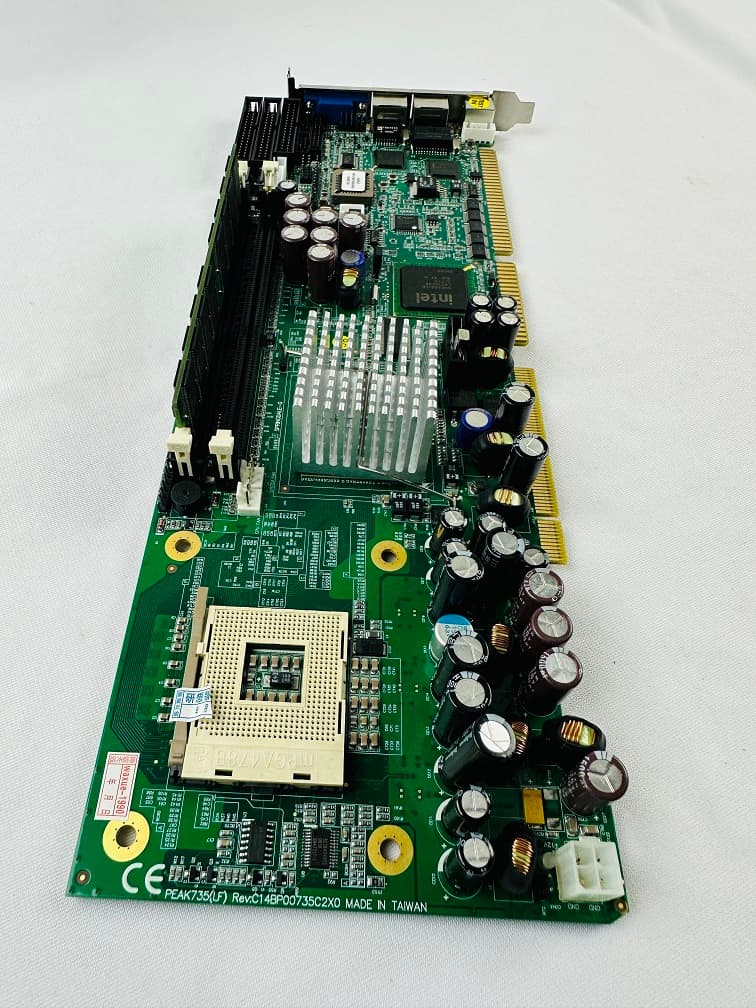

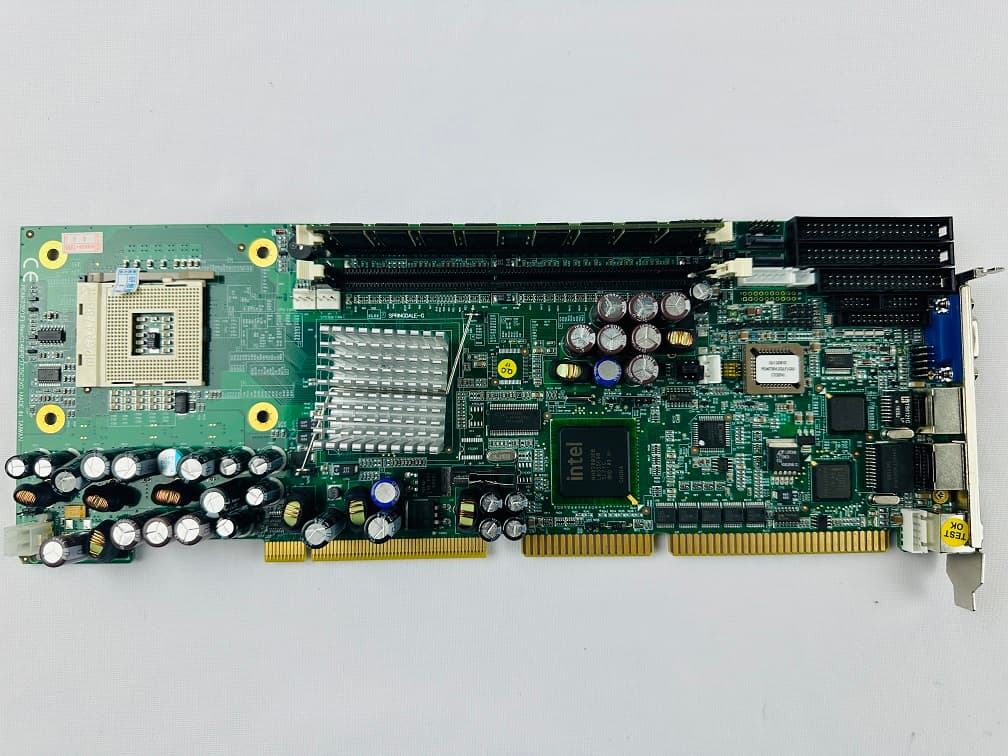

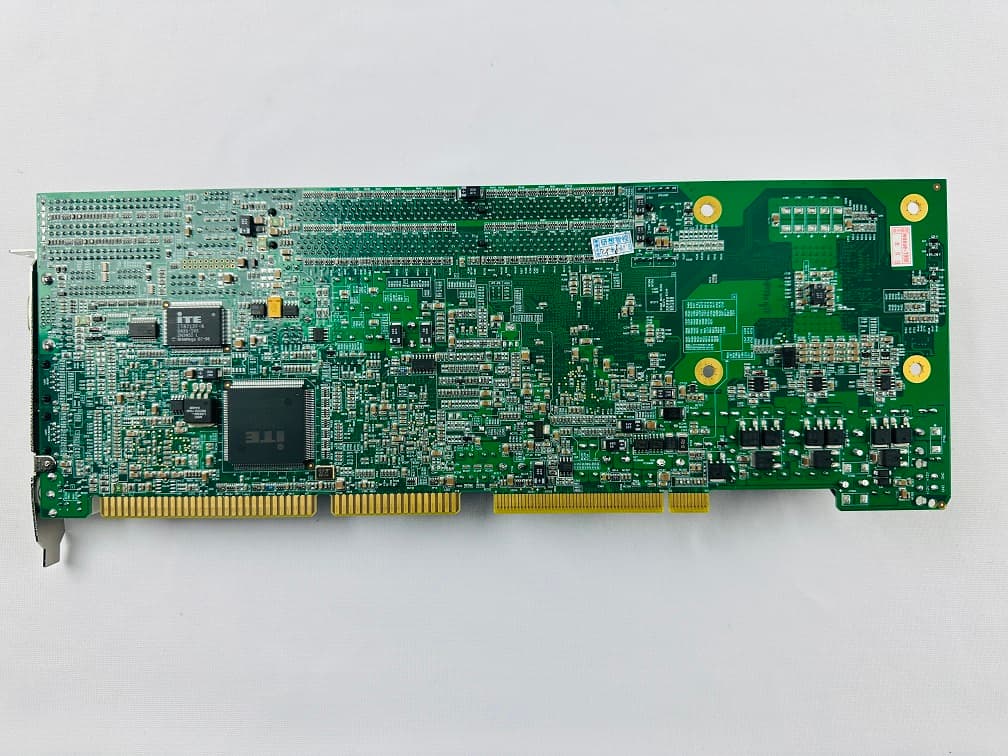

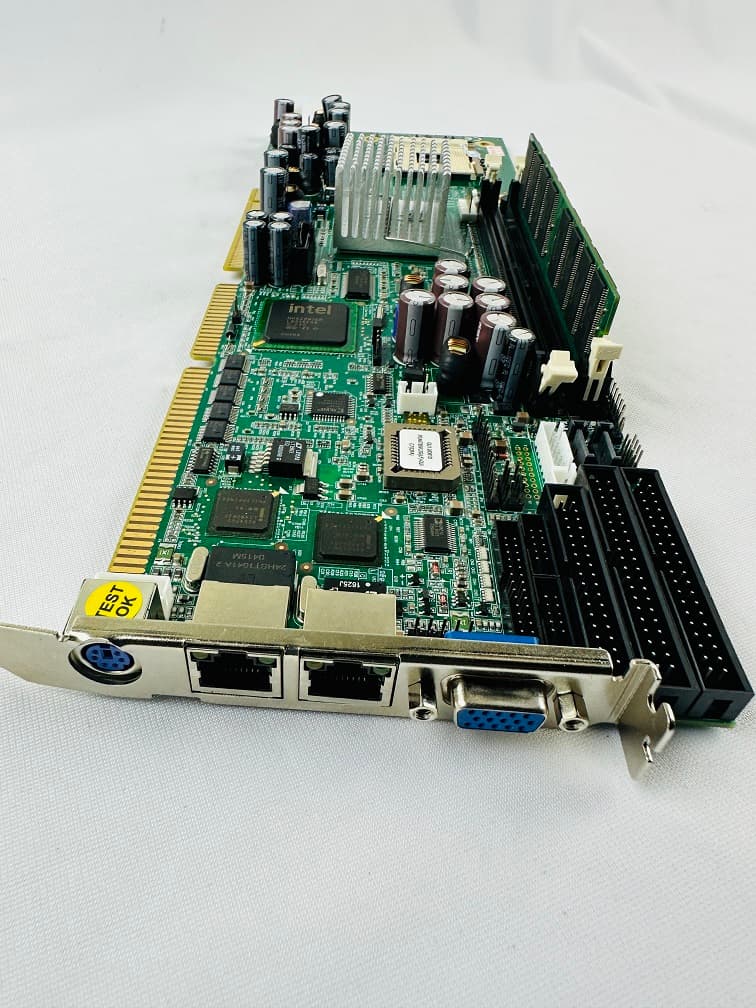

Nexcom PEAK735VL2G(LF) CPU Board

Part Number: PEAK 735VL2G(LF)

Description

Nexcom PEAK 735VL2G(LF) 10P0735VL03x0 PICMG CPU Board | Single Board Computer (SBC) | with Socket 478 Supports Intel Pentium 4 Microprocessors up to 3.2 GHz, 400/533/800 MHz FSB | with Dual LAN .(Intel® 82547EI Gigabit LAN + Intel® 82551QM 10/100 LAN)Features Socket 478 for Intel® Pentium® 4 Processor up to 3.2 GHz with 400/533/800 MHz FSB Intel® 865GV/ICH5 Chipset 2 x 184-pin DIMM, supports DDR 266/333/400 SDRAM Memory up to 2 GB Intel® 82547EI GbE controller & Intel® 82551 QM Fast Ethernet Controller 2 x Serial ATA Ports 2 x USB 2.0 PortsThe PEAK 735VL2G Series is a full-size SBC featuring socket 478 Intel® Pentium® 4 processors with 400 MHz FSB. The PEAK 735VL2G incorporates an Intel® 865GV (GMCH)/ICH5 chipset that supports un-buffered non-ECC DDR 266/333/400 MHz memory up to 2 GB maximum, an integrated graphic controller with shared 64 MB memory, LVDS LCD and dual display support.The South Bridge featuring ICH5 chipset which manages two SATA, Ultra ATA 100, parallel, fl oppy ports, and other versatile I/O ports such as two serial ports, two USB ports, dual LAN ports, an audio interface, and more. The PEAK 735VL2G Series utilize high performance Pentium 4 processor and dual display to meet most of demanding industrial applications.
