BCM MX280NI Mini ITX Motherboard | Intel x86 CPU Board

Part Number: MX280NI

Description

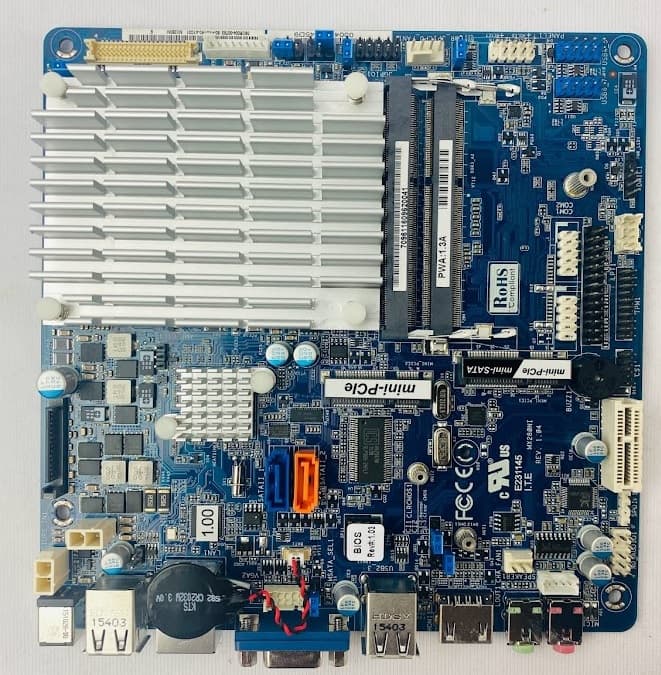

The BCM MX280NI is a thin Mini-ITX motherboard built around the Intel Atom N2800 dual-core processor (1.86 GHz) and Intel NM10 Express Chipset, delivering a compact, fanless computing solution for space-constrained industrial applications. This board supports dual display outputs via HDMI, VGA, and 18/24-bit dual-channel LVDS, and provides flexible expansion with one half-size and one full-size Mini-PCIe slot (the latter shared with mSATA). Connectivity includes eight USB ports, two COM ports, and a wide-range DC input, all housed in a low-profile design under 20 mm. UL certified, the MX280NI offers a replicable, cost-effective alternative for OEMs transitioning from discontinued original boards without the expense of system recertification.
